Features:

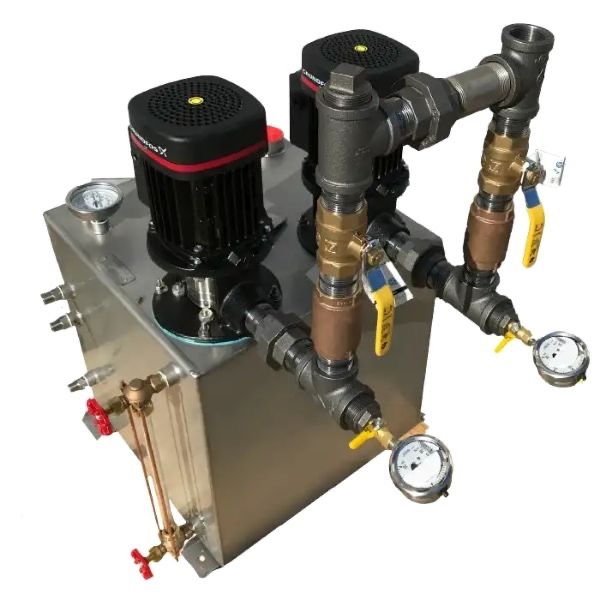

Grundfos Pumps | 304 Stainless Steel Pump Impeller | Cast Iron or Stainless Steel Pump Discharge Heads | Strainers and Induces on pump inlets | Temperatures to 210°F | 304 Stainless Steel Receivers | Service one pump while other operates | No suction piping or valves | 2" to 4" Inlet, 2" to 3" Vent, 1" Drain | Clean out access to tank through pump opening | Easy to install in tight areas Small foot print | Easy to maintain
Standard Features: Duplex Only Flows to 42 GPM, Pressures to 200 PSI 25, 50, 100, 200, 300 Gallon Receivers Electric Alternator Available Options: • Sight Glass set with brass or stainless valves • Custom tank sizes to fit standard door sizes • Bi-Metal 250°F Thermometer • All 304 SS Pump (Change Iron discharge head to 304SS) • Control panels mounted and wired • All 304SS float mechanism (Change brass/iron bushing to 304SS) custom modifications and sizes also available
Part # | Type |
Boiler Power |
Dis. Pressure, psi. |
Pump Capacity |
Motor Power |
Rec. Capacity |
Inlet, in. | O/F | Vent | ||
---|---|---|---|---|---|---|---|---|---|---|---|
|
D25B-0515-03 | Duplex | 20 - 30 hp | 15 | 5 gpm | 1/3 hp | 25 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D25B-0530-03 | Duplex | 20 - 30 hp | 30 | 5 gpm | 1/3 hp | 25 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D25B-0545-03 | Duplex | 20 - 30 hp | 45 | 5 gpm | 1/3 hp | 25 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D25B-0560-05 | Duplex | 20 - 30 hp | 60 | 5 gpm | 1/2 hp | 25 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D25B-0580-07 | Duplex | 20 - 30 hp | 80 | 5 gpm | 3/4 hp | 25 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D25B-05110-15 | Duplex | 20 - 30 hp | 110 | 5 gpm | 1/2 hp | 25 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D50B-1015-03 | Duplex | 40 - 60 hp | 15 | 10 gpm | 1/3 hp | 50 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D50B-1030-05 | Duplex | 40 - 60 hp | 30 | 10 gpm | 1/2 hp | 50 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D50B-1045-07 | Duplex | 40 - 60 hp | 45 | 10 gpm | 3/4 hp | 50 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D50B-1065-10 | Duplex | 40 - 60 hp | 65 | 10 gpm | 1 hp | 50 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
D50B-1090-15 | Duplex | 40 - 60 hp | 90 | 10 gpm | 1 1/2 hp | 50 gal | 2" NPT | 2" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-1630-07 | Duplex | 70 - 125 hp | 30 | 16 gpm | 3/4 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-1650-15 | Duplex | 70 - 125 hp | 50 | 16 gpm | 1 1/2 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-1665-15 | Duplex | 70 - 125 hp | 65 | 16 gpm | 1 1/2 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-1685-20 | Duplex | 70 - 125 hp | 85 | 16 gpm | 2 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-16100-30 | Duplex | 70 - 125 hp | 100 | 16 gpm | 3 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-16125-30 | Duplex | 70 - 125 hp | 125 | 16 gpm | 3 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-16170-50 | Duplex | 70 - 125 hp | 170 | 16 gpm | 5 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB100B-16200-50 | Duplex | 70 - 125 hp | 200 | 16 gpm | 5 hp | 100 gal | 4" NPT | 3" NPT | 2" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB200B-2825-07 | Duplex | 150 - 200 hp | 25 | 28 gpm | 3/4 hp | 200 gal | 4" NPT | 3" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB200B-2840-15 | Duplex | 150 - 200 hp | 40 | 28 gpm | 1 1/2 hp | 200 gal | 4" NPT | 3" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB200B-2865-20 | Duplex | 150 - 200 hp | 65 | 28 gpm | 2 hp | 200 gal | 4" NPT | 3" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB200B-28100-30 | Duplex | 150 - 200 hp | 100 | 28 gpm | 3 hp | 200 gal | 4" NPT | 3" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB200B-28135-50 | Duplex | 150 - 200 hp | 135 | 28 gpm | 5 hp | 200 gal | 4" NPT | 3" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB200B-28165-50 | Duplex | 150 - 200 hp | 165 | 28 gpm | 5 hp | 200 gal | 4" NPT | 3" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB300B-4215-07 | Duplex | 250 - 300 hp | 15 | 42 gpm | 3/4 hp | 300 gal | 4" NPT | 4" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB300B-4235-15 | Duplex | 250 - 300 hp | 35 | 42 gpm | 1 1/2 hp | 300 gal | 4" NPT | 4" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB300B-4250-30 | Duplex | 250 - 300 hp | 50 | 42 gpm | 3 hp | 300 gal | 4" NPT | 4" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB300B-4270-30 | Duplex | 250 - 300 hp | 70 | 42 gpm | 3 hp | 300 gal | 4" NPT | 4" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB300B-4285-50 | Duplex | 250 - 300 hp | 85 | 42 gpm | 5 hp | 300 gal | 4" NPT | 4" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB300B-42100-50 | Duplex | 250 - 300 hp | 100 | 42 gpm | 5 hp | 300 gal | 4" NPT | 4" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
|
DB300B-42145-75 | Duplex | 250 - 300 hp | 145 | 42 gpm | 7 1/2 hp | 300 gal | 4" NPT | 4" NPT | 3" NPT | Add to Cart Add to RFQ Dimensional Chart |
