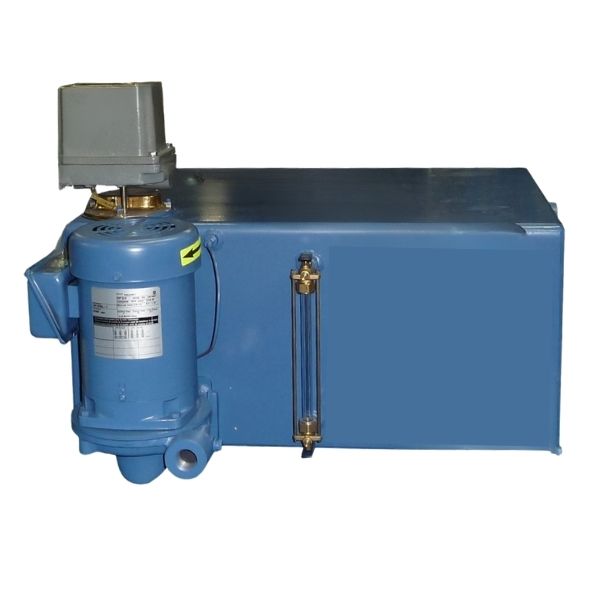

Condensate Return Pumps and Boiler Feed Units | Boiler Supplies Airflow Condensate Return Units in Stock | Boiler Supplies Airflow Pump 20 Gallon Condensate Units
Standard Features:
20 gallon 1/4" thick steel receiver.
Simplex or duplex Condensate Pump setup with ODP motors.
Silicon bronze impellers with John Crane seals.
Square D float switch.
Optional Features for an Additional Charge:
Stainless steel 1/4" thick receiver.
Multi-Stage high pressure pumps.
TEFC or Explosion Proof motors.

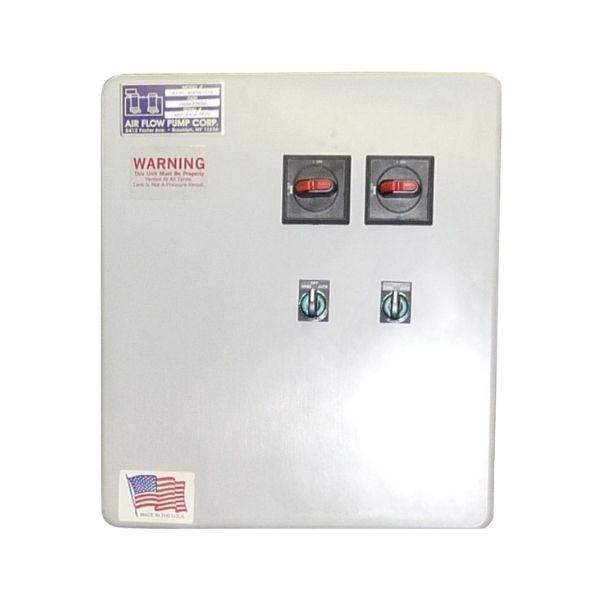

Standard control panels NEMA 12
NEMA 4, 4x or explosion proof rated panels available
Isolation valves situated between the pumps & receiver.
Thermometer
| Part # |
GPM - Discharge PSI (Ft. Hd.) |
Motor Power |
Discharge Size |
Inlet Size |
Rec. Capacity |
Type | Price | Fill in Voltage and Phase | Qty | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
|

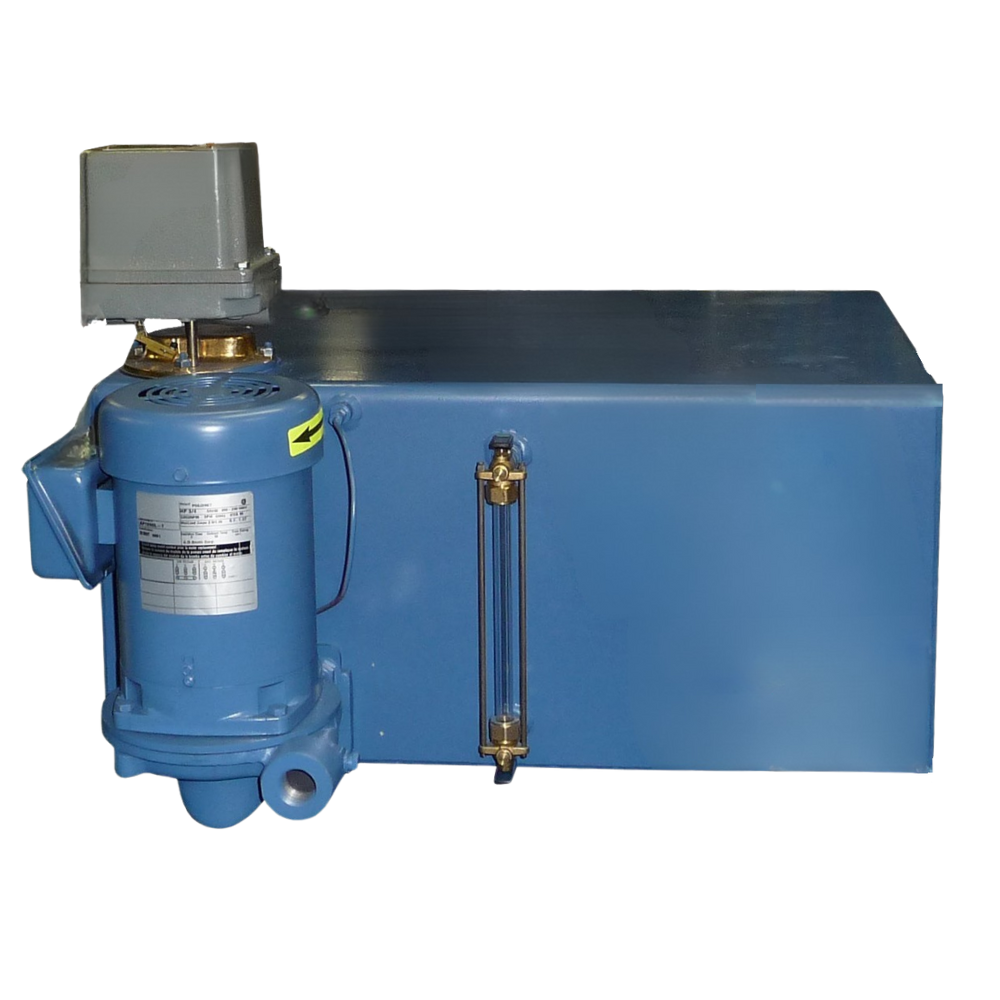

AFP-20S-C |
35 gpm - 10 PSI (23.1 Ft. Hd.) 28 gpm - 20 PSI (46.2 Ft. Hd.) 15 gpm - 30 PSI (69.3 Ft. Hd.) |
1/2 hp | 1" | 2" | 20 gal | Simplex | $4,151.50 | Add to Cart Dimensional Chart | ||
|
|
AFP-20S-D |
54 gpm - 10 PSI (23.1 Ft. Hd.) 36 gpm - 20 PSI (46.2 Ft. Hd.) 27 gpm - 30 PSI (69.3 Ft. Hd.) 10 gpm - 40 PSI (92.4 Ft. Hd.) |
3/4 hp | 1" | 2" | 20 gal | Simplex | $4,384.25 | Add to Cart Dimensional Chart | ||
|
|
AFP-20S-E |
58 gpm - 10 PSI (23.1 Ft. Hd.) 50 gpm - 20 PSI (46.2 Ft. Hd.) 40 gpm - 30 PSI (69.3 Ft. Hd.) 25 gpm - 40 PSI (92.4 Ft. Hd.) |
1 hp | 1" | 2" | 20 gal | Simplex | $4,441.25 | Add to Cart Dimensional Chart | ||
|
|
AFP-20S-F |
69 gpm - 10 PSI (23.1 Ft. Hd.) 62 gpm - 20 PSI (46.2 Ft. Hd.) 50 gpm - 30 PSI (69.3 Ft. Hd.) 35 gpm - 40 PSI (92.4 Ft. Hd.) |
1 1/2 hp | 1" | 2" | 20 gal | Simplex | $4,645.50 | Add to Cart Dimensional Chart | ||
|
|
AFP-20S-G |
82 gpm - 10 PSI (23.1 Ft. Hd.) 75 gpm - 20 PSI (46.2 Ft. Hd.) 64 gpm - 30 PSI (69.3 Ft. Hd.) 39 gpm - 40 PSI (92.4 Ft. Hd.) |
2 hp | 1 1/2" | 2" | 20 gal | Simplex | $4,773.75 | Add to Cart Dimensional Chart | ||
|
|
AFP-20DS-C |
35 gpm - 10 PSI (23.1 Ft. Hd.) 28 gpm - 20 PSI (46.2 Ft. Hd.) 15 gpm - 30 PSI (69.3 Ft. Hd.) |
1/2 hp | 1" | 2" | 20 gal | Duplex | $4,560.00 | Add to Cart Dimensional Chart | ||
|
|
AFP-20DS-D |
54 gpm - 10 PSI (23.1 Ft. Hd.) 36 gpm - 20 PSI (46.2 Ft. Hd.) 27 gpm - 30 PSI (69.3 Ft. Hd.) 10 gpm - 40 PSI (92.4 Ft. Hd.) |
3/4 hp | 1" | 2" | 20 gal | Duplex | $4,759.50 | Add to Cart Dimensional Chart | ||
|
|
AFP-20DS-E |
58 gpm - 10 PSI (23.1 Ft. Hd.) 50 gpm - 20 PSI (46.2 Ft. Hd.) 40 gpm - 30 PSI (69.3 Ft. Hd.) 25 gpm - 40 PSI (92.4 Ft. Hd.) |
1 hp | 1" | 2" | 20 gal | Duplex | $5,210.75 | Add to Cart Dimensional Chart | ||
|
|
AFP-20DS-F |
69 gpm - 10 PSI (23.1 Ft. Hd.) 62 gpm - 20 PSI (46.2 Ft. Hd.) 50 gpm - 30 PSI (69.3 Ft. Hd.) 35 gpm - 40 PSI (92.4 Ft. Hd.) |
1 1/2 hp | 1" | 2" | 20 gal | Duplex | $5,538.50 | Add to Cart Dimensional Chart | ||
|
|

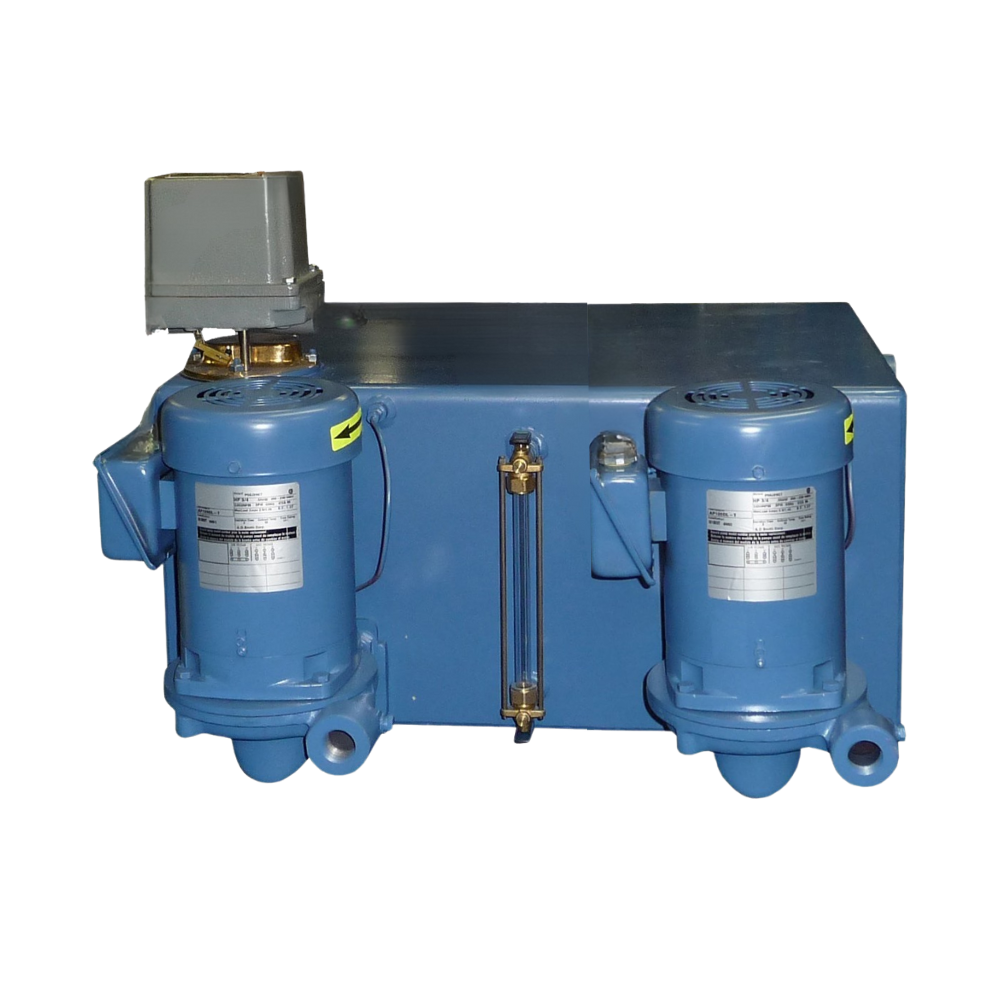

AFP-20DS-G |
82 gpm - 10 PSI (23.1 Ft. Hd.) 75 gpm - 20 PSI (46.2 Ft. Hd.) 64 gpm - 30 PSI (69.3 Ft. Hd.) 39 gpm - 40 PSI (92.4 Ft. Hd.) |
2 hp | 1 1/2" | 2" | 20 gal | Duplex | $5,842.50 | Add to Cart Dimensional Chart | ||
|
|
AFP-20DS-H |
90 gpm - 10 PSI (23.1 Ft. Hd.) 82 gpm - 20 PSI (46.2 Ft. Hd.) 70 gpm - 30 PSI (69.3 Ft. Hd.) 56 gpm - 40 PSI (92.4 Ft. Hd.) |
2 1/2 hp | 1 1/2" | 2" | 20 gal | Duplex | $6,393.50 | Add to Cart Dimensional Chart |
