Condensate Return Pumps and Boiler Feed Units | Boiler Supplies Airflow Condensate Return Units in Stock | Boiler Supplies Airflow Pumps to replace ALL Weinman In-Ground Condensate Pumps

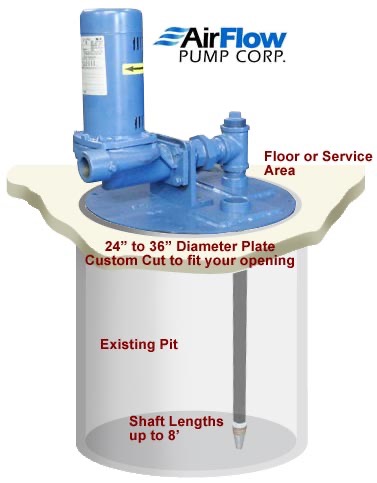

The Pro Strom Condensate Pump Series of cast iron pumps offer superior unmatched performance, available in 1 hp through 2-1/2 hp models. The Pro Storm Condensate models offer "single body fill" priming to 25-foot lifts, in less than 5 minutes! The Condensate pumps exceed the strict safety requirements of Underwriter Laboratory UL778, and CSA. Required by many state and local codes. The unique construction of these pumps makes this the perfect pumps for in-ground condensate tank removal. Call Power Plus International today with any questions on our in-ground condensate units. Simplex Condensate Unit (24" to 36" Diameter Plate) Available up to 8' in length Duplex Condensate Unit with M/A (24" to 36" Diameter Plate) Available up to 8' in length Our Unit fits your existing Pit. Just unbolt your in-ground condensate unit and bolt ours in place. Replace your Wienman, Weil, Sterling, Skidmore, Chicago Pump, etc. Note: All single phase motors are shipped from the factory set at 230 volt
Specifications: Body and Seal Plate - Close-grained cast iron Impeller - Brass Diffuser - Reinforced Polypropylene Shaft - One-piece threaded 416 S/S Base - Steel, 10 Gauge Motor - 2 compartment Features: Rugged Construction - Close grained cast iron body, specially treated for corrosion resistance. Noryl Impeller - Precision-molded for perfect balance...ultra-smooth for highest performance and efficiency. Precision Molded Diffuser - Pump primes faster, handles more air, with multi-port. precision-molded, reinforced polypropylene diffuser. High Head Models - Deliver up to 145' of head with capacities to 95 GPM. Easy Serviceability - Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting. Motor Windings - Superior insulation materials protect against excessive moisture and contaminants....ensures prolonged motor life. Balanced Rotor - Die cast under high pressures for uniform performance and greater efficiency, dynamically balanced. Drain Port - Provided or easy winterizing
| HP | Voltage | Phase | Suction | Discharge | PSI | Ft Head / GPM | ||
|---|---|---|---|---|---|---|---|---|
|
|
2 | 115/230 | 1 | 2" | 2" |
20 30 40 50 |
46.2 / 75 69.3 / 64 92.4 / 39 115.5 / 30 |
Add to RFQ |
|
|
2 | 208-230/460 | 3 | 2" | 2" |
20 30 40 50 |
46.2 / 75 69.3 / 64 92.4 / 39 115.5 / 30 |
Add to RFQ |
|
|
3 | 115/230 | 1 | 2" | 2" |
20 30 40 50 |
46.2 / 82 69.3 / 70 92.4 / 56 115.5 / 40 |
Add to RFQ |
|
|
3 | 208-230/460 | 3 | 2" | 2" |
20 30 40 50 |
46.2 / 82 69.3 / 70 92.4 / 56 115.5 / 40 |
Add to RFQ |
