Standard Armstrong Water to Water (W) complete Shell and Tube Heat Exchangers. 2 and 4 pass units, 4" nominal thru 10" nominal in our catalog. Larger units available upon request.

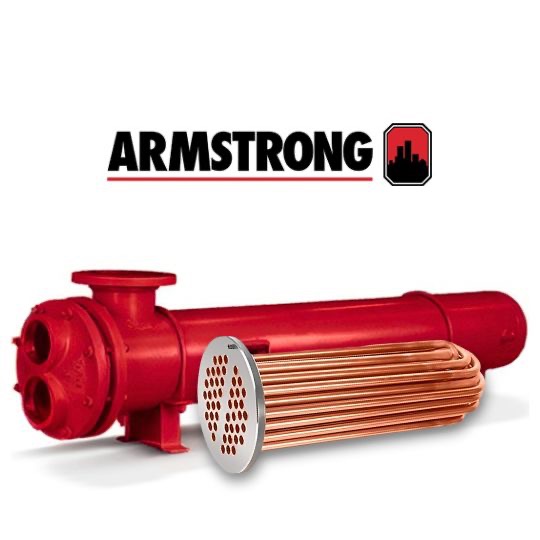

Armstrong U-Tube heat exchangers are designed for durability and include a removable tube bundle as a standard feature. The U-shaped tube design provides a long service life by eliminating the effects of thermal expansion and contraction. These heat exchangers feature carbon steel components, with copper tubes, and a rugged cast iron head.
Materials:
Standard Copper (tubes), carbon steel (shell, tube sheet, baffles) Optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)
| Item # | Item Name | Type |
Shell Dia.in. |
Shell Material |
Tube Plate Material |
Head Material |
Working Pressure, psi. |
Max. Operating Temp,°F |
Weight lbs. |
|
|---|---|---|---|---|---|---|---|---|---|---|
| W-42-22 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 60 | Add to RFQ Dimensional Chart |
| W-43-22 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 76 | Add to RFQ Dimensional Chart |
| W-44-22 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 92 | Add to RFQ Dimensional Chart |
| W-45-22 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 108 | Add to RFQ Dimensional Chart |
| W-46-22 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 124 | Add to RFQ Dimensional Chart |
| W-47-22 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 140 | Add to RFQ Dimensional Chart |
| W-42-42 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 60 | Add to RFQ Dimensional Chart |
| W-43-42 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 76 | Add to RFQ Dimensional Chart |
| W-44-42 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 92 | Add to RFQ Dimensional Chart |
| W-45-42 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 108 | Add to RFQ Dimensional Chart |
| W-46-42 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 124 | Add to RFQ Dimensional Chart |
| W-47-42 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 4 | Steel | Steel | Cast Iron | 150 | 375 | 140 | Add to RFQ Dimensional Chart |
| W-62-23 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 115 | Add to RFQ Dimensional Chart |
| W-63-23 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 140 | Add to RFQ Dimensional Chart |
| W-64-23 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 165 | Add to RFQ Dimensional Chart |
| W-65-23 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 190 | Add to RFQ Dimensional Chart |
| W-66-23 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 215 | Add to RFQ Dimensional Chart |
| W-67-23 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 240 | Add to RFQ Dimensional Chart |
| W-68-23 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 265 | Add to RFQ Dimensional Chart |
| W-62-43 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 115 | Add to RFQ Dimensional Chart |
| W-63-43 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 140 | Add to RFQ Dimensional Chart |
| W-64-43 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 165 | Add to RFQ Dimensional Chart |
| W-65-43 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 190 | Add to RFQ Dimensional Chart |
| W-66-43 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 215 | Add to RFQ Dimensional Chart |
| W-67-43 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 240 | Add to RFQ Dimensional Chart |
| W-68-43 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 6 | Steel | Steel | Cast Iron | 150 | 375 | 265 | Add to RFQ Dimensional Chart |
| W-82-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 150 | Add to RFQ Dimensional Chart |
| W-83-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 190 | Add to RFQ Dimensional Chart |
| W-84-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 230 | Add to RFQ Dimensional Chart |
| W-85-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 270 | Add to RFQ Dimensional Chart |
| W-86-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 310 | Add to RFQ Dimensional Chart |
| W-87-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 350 | Add to RFQ Dimensional Chart |
| W-88-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 390 | Add to RFQ Dimensional Chart |
| W-89-24 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 430 | Add to RFQ Dimensional Chart |
| W-82-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 150 | Add to RFQ Dimensional Chart |
| W-83-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 190 | Add to RFQ Dimensional Chart |
| W-84-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 230 | Add to RFQ Dimensional Chart |
| W-85-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 270 | Add to RFQ Dimensional Chart |
| W-86-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 310 | Add to RFQ Dimensional Chart |
| W-87-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 150 | 375 | 350 | Add to RFQ Dimensional Chart |
| W-88-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 375 | 390 | Add to RFQ Dimensional Chart | |
| W-89-44 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 8 | Steel | Steel | Cast Iron | 375 | 430 | Add to RFQ Dimensional Chart | |
| W-102-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 226 | Add to RFQ Dimensional Chart | |
| W-103-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 284 | Add to RFQ Dimensional Chart | |
| W-104-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 342 | Add to RFQ Dimensional Chart | |
| W-105-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 400 | Add to RFQ Dimensional Chart | |
| W-106-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 458 | Add to RFQ Dimensional Chart | |
| W-107-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 516 | Add to RFQ Dimensional Chart | |
| W-108-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 574 | Add to RFQ Dimensional Chart | |
| W-109-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 632 | Add to RFQ Dimensional Chart | |
| W-1010-25 |
Water to Water U-Tube Heat Exchangers |
2 Pass | 10 | Steel | Steel | Cast Iron | 375 | 690 | Add to RFQ Dimensional Chart | |
| W-102-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 226 | Add to RFQ Dimensional Chart | |
| W-103-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 284 | Add to RFQ Dimensional Chart | |
| W-104-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 342 | Add to RFQ Dimensional Chart | |
| W-105-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 400 | Add to RFQ Dimensional Chart | |
| W-106-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 458 | Add to RFQ Dimensional Chart | |
| W-107-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 516 | Add to RFQ Dimensional Chart | |
| W-108-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 574 | Add to RFQ Dimensional Chart | |
| W-109-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 632 | Add to RFQ Dimensional Chart | |
| W-1010-45 |
Water to Water U-Tube Heat Exchangers |
4 Pass | 10 | Steel | Steel | Cast Iron | 375 | 690 | Add to RFQ Dimensional Chart |
