Shell and Tube Heat Exchangers & Unfired Boilers | Boilersupplies Bell & Gossett Heat Exchangers | Boilersupplies.com Bell & Gossett Hi-Temperature Heat Exchanger (Water in Shell - Water in Tubes)

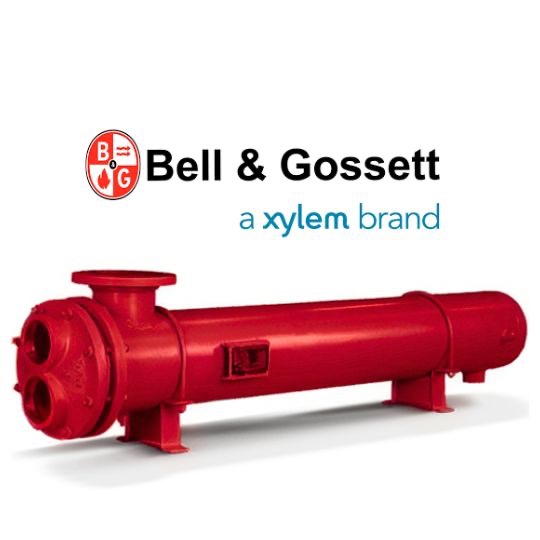

Bell & Gossett Hi-Temperature heat exchangers are furnished with 3/4" O.D. Copper-Nickel tubes, cast ductile iron heads, steel tube sheets, steel shell, steel baffle plates, and 304 SS spiral wound gaskets. ASME stamp for 400 PSIG and 150 PSIG shell design pressures. 6 pass available.
• Removable bundle for ease of inspection and replacement.
• This design allows for differential thermal expansion between shell an tubes as well as between individual tubes.
• The result is a heat exchanger capable of withstanding thermal shock.
• The bundle design and tube layout allow for the maximum heat transfer surface area per given shell size.
• The SU/WU exchangers are also available with Diamondback double wall tube construction and heavy duty construction for high temperature applications as well as tank heater designs.
Materials:
Standard Copper (tubes), carbon steel (shell, tube sheet, baffles) Optional Brass (tubes, tube sheets, baffles), bronze (heads), stainless steel (tubes, tube sheets, heads, shells, baffles), 90/10 Cu-Ni (tubes)
Bell & Gossett Hi-Temperature heat exchangers are furnished with 3/4" O.D. Copper-Nickel tubes, cast ductile iron heads, steel tube sheets, steel shell, steel baffle plates, and 304 SS spiral wound gaskets. ASME stamp for 400 PSIG and 150 PSIG shell design pressures. 6 pass available. Bell & Gossett Tank heater units are furnished with cast iron heads, 3/4" O.D. copper tubes, steel tube sheets, steel collars, brass tube supports, tie-rods and spacers, two (2) compressed fiber gaskets, nuts and bolts. Standard units are furnished with ASME stamp.
| Item # |
12-Digit B&G Dwg. No. |
Type |
Diameter, inches |
Tube Sheet Material |
Tube Material |
|
|---|---|---|---|---|---|---|
| HTWU-43 | 5-268-04-036-001 | 2 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-44 | 5-268-04-048-001 | 2 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-45 | 5-268-04-060-001 | 2 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-46 | 5-268-04-072-001 | 2 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-47 | 5-268-04-084-001 | 2 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-43 | 5-268-04-036-002 | 4 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-44 | 5-268-04-048-002 | 4 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-45 | 5-268-04-060-002 | 4 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-46 | 5-268-04-072-002 | 4 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-47 | 5-268-04-084-002 | 4 Pass | 4" | Steel | CUNI | Add to RFQ |
| HTWU-63 | 5-268-06-036-001 | 2 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-64 | 5-268-06-048-001 | 2 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-65 | 5-268-06-060-001 | 2 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-66 | 5-268-06-072-001 | 2 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-67 | 5-268-06-084-001 | 2 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-68 | 5-268-06-096-001 | 2 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-63 | 5-268-06-036-002 | 4 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-64 | 5-268-06-048-002 | 4 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-65 | 5-268-06-060-002 | 4 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-66 | 5-268-06-072-002 | 4 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-67 | 5-268-06-084-002 | 4 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-68 | 5-268-06-096-002 | 4 Pass | 6" | Steel | CUNI | Add to RFQ |
| HTWU-84 | 5-268-08-048-001 | 2 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-85 | 5-268-08-060-001 | 2 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-86 | 5-268-08-072-001 | 2 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-87 | 5-268-08-084-001 | 2 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-88 | 5-268-08-096-001 | 2 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-89 | 5-268-08-108-001 | 2 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-84 | 5-268-08-048-002 | 4 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-85 | 5-268-08-060-002 | 4 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-86 | 5-268-08-072-002 | 4 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-87 | 5-268-08-084-002 | 4 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-88 | 5-268-08-096-002 | 4 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-89 | 5-268-08-108-002 | 4 Pass | 8" | Steel | CUNI | Add to RFQ |
| HTWU-104 | 5-268-10-048-001 | 2 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-105 | 5-268-10-060-001 | 2 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-106 | 5-268-10-072-001 | 2 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-107 | 5-268-10-084-001 | 2 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-108 | 5-268-10-096-001 | 2 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-109 | 5-268-10-108-001 | 2 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-104 | 5-268-10-048-002 | 4 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-105 | 5-268-10-060-002 | 4 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-106 | 5-268-10-072-002 | 4 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-107 | 5-268-10-084-002 | 4 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-108 | 5-268-10-096-002 | 4 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-109 | 5-268-10-108-002 | 4 Pass | 10" | Steel | CUNI | Add to RFQ |
| HTWU-124 | 5-268-12-048-001 | 2 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-125 | 5-268-12-060-001 | 2 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-126 | 5-268-12-072-001 | 2 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-127 | 5-268-12-084-001 | 2 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-128 | 5-268-12-096-001 | 2 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-129 | 5-268-12-108-001 | 2 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-1210 | 5-268-12-120-001 | 2 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-124 | 5-268-12-048-001 | 4 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-125 | 5-268-12-060-001 | 4 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-126 | 5-268-12-072-001 | 4 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-127 | 5-268-12-084-001 | 4 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-128 | 5-268-12-096-001 | 4 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-129 | 5-268-12-108-001 | 4 Pass | 12" | Steel | CUNI | Add to RFQ |
| HTWU-1210 | 5-268-12-120-001 | 4 Pass | 12" | Steel | CUNI | Add to RFQ |
