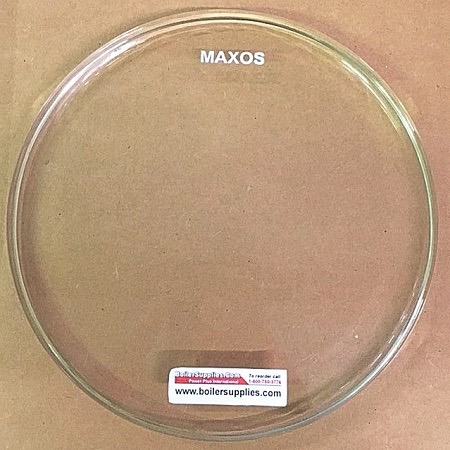

Pyrex Annular Edge Glass is no longer available due to the shutdown of Corning's Sunderland plant. The only replacement is Maxos® molded circles, made from borosilicate 8488 glass, offering superior quality. Maxos® features a uniform 3/4" thickness, compared to Pyrex®'s 5/8", providing extra safety. The molding process ensures outstanding optical clarity and greater thermal shock resistance. Maxos® glass is tested to withstand 8 times its rated pressure, ensuring maximum safety for boiler operators.

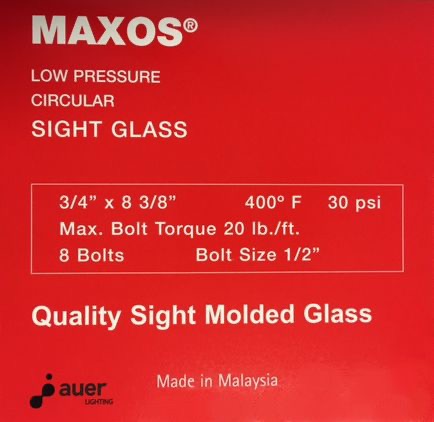

Maxos® Low Pressure - Red Box (400°F Max Temp.)
|
Maxos® Part # |
Corning Part # |
Diameter (Inches) |
Thickness (Inches) |
Pressure (PSIG) |
Description | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 754000L | 695620 | 4" | 3/4" | 150 | 3/4" x 4" Maxos Sight Glass - Low Pressure | $90.15 | Add to Cart | |
| 755000L | 695610 | 5" | 3/4" | 100 | 3/4" x 5" Maxos Sight Glass - Low Pressure | $119.12 | Add to Cart | |
| 756000L | 692540 | 6" | 3/4" | 60 | 3/4" x 6" Maxos Sight Glass - Low Pressure | $145.33 | Add to Cart | |
| 756750L | 694790 | 6-3/4" | 3/4" | 45 | 3/4" x 6-3/4" Maxos Sight Glass - Low Pressure | $174.30 | Add to Cart | |
| 758375L | 694800 | 8-3/8" | 3/4" | 30 | 3/4" x 8-3/8" Maxos Sight Glass - Low Pressure | $252.88 | Add to Cart |
Pyrex 7740 Annular Edge Glass is no longer available due to Corning's Sunderland plant shutdown. The only replacement is Maxos® molded circles, made from superior borosilicate 8488 glass. Maxos® offers a uniform 3/4" thickness, enhancing safety compared to Pyrex®'s 5/8". The molding process ensures outstanding optical clarity and greater thermal shock resistance, with testing to 8 times its rated pressure for maximum user safety.

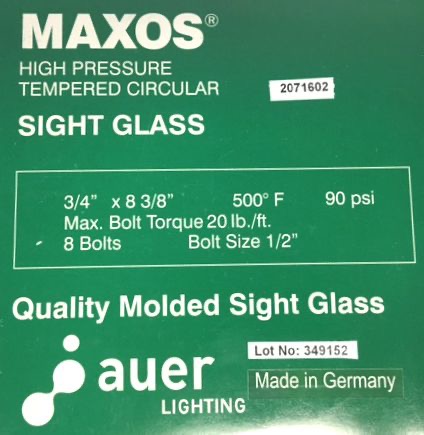

Maxos® High Pressure - Green Box (Tempered, 500°F Max Temp.)
|
Maxos® Part # |
Corning Part # |
Diameter (Inches) |
Thickness (Inches) |
Pressure (PSIG) |
Description | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 754000H | 605621 | 4" | 3/4" | 450 | 3/4" x 4" Maxos Sight Glass - High Pressure | $136.57 | Add to Cart | |
| 755000H | 695611 | 5" | 3/4" | 300 | 3/4" x 5" Maxos Sight Glass - High Pressure | $181.70 | Add to Cart | |
| 756000H | 692541 | 6" | 3/4" | 180 | 3/4" x 6" Maxos Sight Glass - High Pressure | $213.63 | Add to Cart | |
| 756750H | 694791 | 6-3/4" | 3/4" | 135 | 3/4" x 6-3/4" Maxos Sight Glass - High Pressure | $260.13 | Add to Cart | |
| 758375H | 694801 | 8-3/8" | 3/4" | 90 | 3/4" x 8-3/8" Maxos Sight Glass - High Pressure | $373.40 | Add to Cart |
