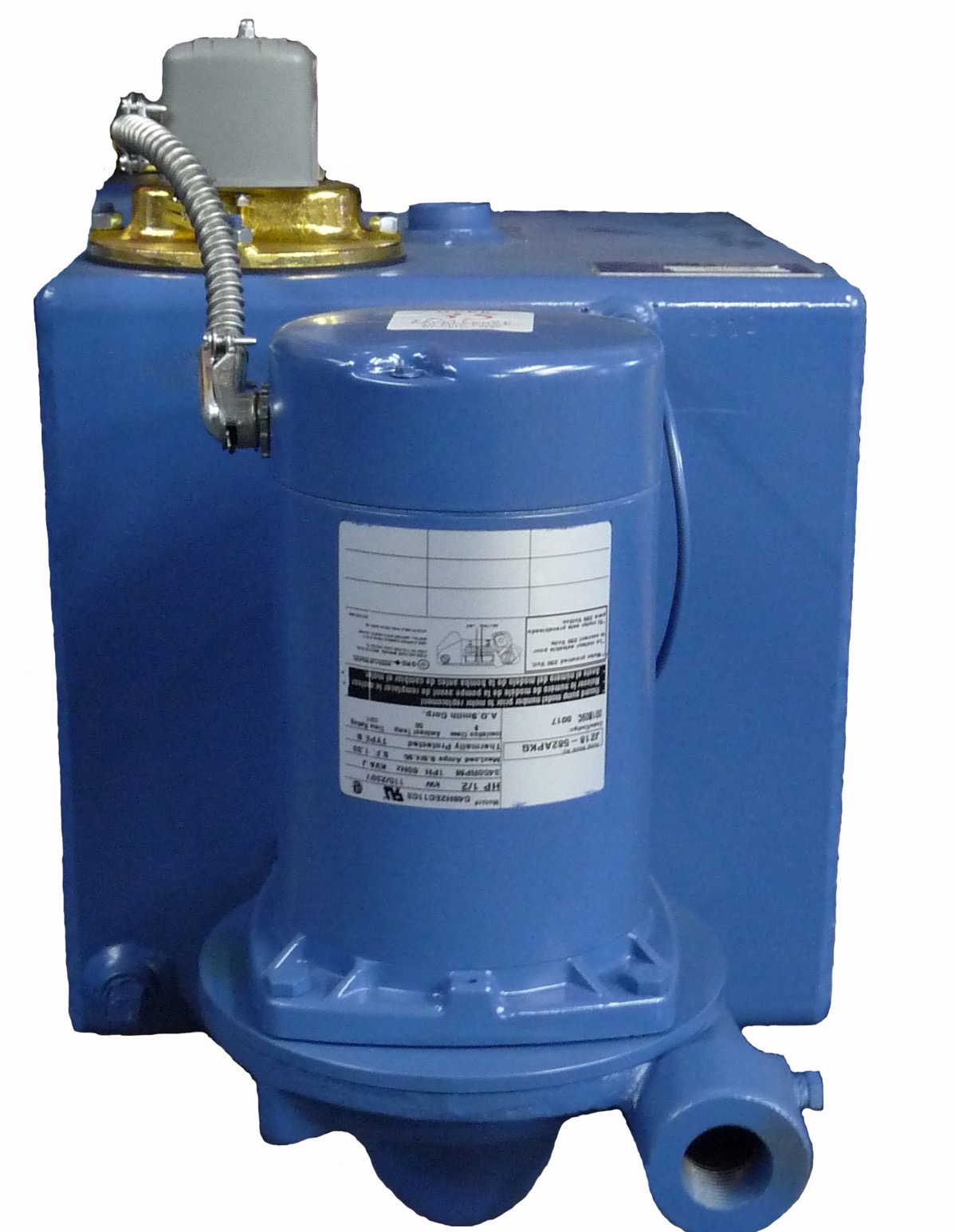

Condensate Return Pumps and Boiler Feed Units | Boiler Supplies Simplex Condensate Return Tanks | In Stock Airflow Pump 10 Gallon Condensate Unit
Standard Features:
10 gallon 1/4" thick steel receiver.
Simplex or duplex Condensate Pump setup with ODP motors.
Silicon bronze impellers with John Crane seals.
Square D float switch.
Options:
Stainless steel 1/4" thick receiver.
Multi-Stage high pressure pumps.

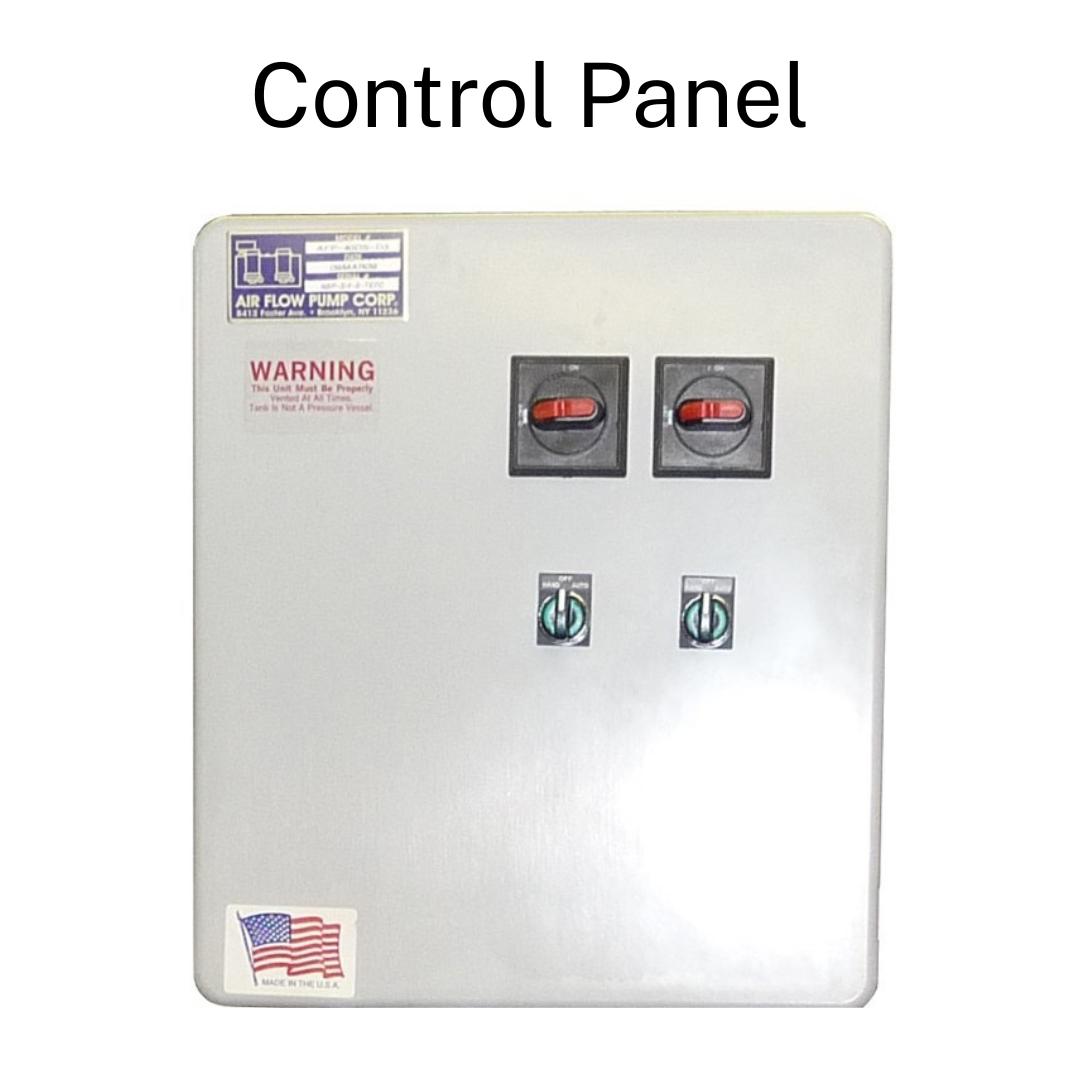

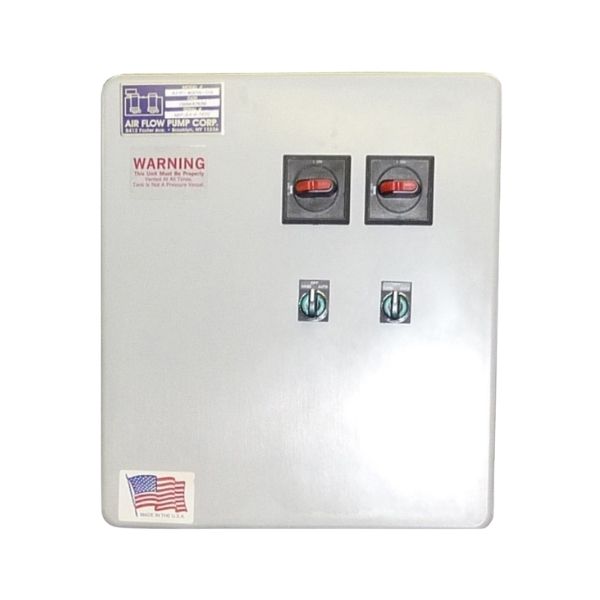

TEFC or Explosion Proof motors, Simplex or duplex control panel.
NEMA 4, 4x or explosion proof rated panels.
Isolation valves situated between the pumps & receiver
Thermometer
| Specifications |
GPM - Discharge PSI (Ft. Hd.) |
Motor Power |
Discharge Size, in. |
Rec. Capacity |
Type |
Optional Control Panel |
Fill in Voltage and Phase |
Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
AFP10S-C |
35 gpm - 10 PSI (23.1 Ft. Hd.) 28 gpm - 20 PSI (46.2 Ft. Hd.) 15 gpm - 30 PSI (69.3 Ft. Hd.) |
1/2 hp | 1 | 10 gal | Simplex | Simplex Panels | $2,680.00 | Add to RFQ Dimensional Chart | |
|
|
AFP-10S-D |
36 gpm - 20 PSI (46.2 Ft. Hd.) 27 gpm - 30 PSI (69.3 Ft. Hd.) 10 gpm - 40 PSI (92.4 Ft. Hd.) |
3/4 hp | 1 | 10 gal | Simplex | Simplex Panels | $2,790.00 | Add to RFQ Dimensional Chart | |
|
|
AFP-10S-E |
50 gpm - 20 PSI (46.2 Ft. Hd.) 40 gpm - 30 PSI (69.3 Ft. Hd.) 25 gpm - 40 PSI (92.4 Ft. Hd.) |
1 hp | 1 | 10 gal | Simplex | Simplex Panels | $3,435.00 | Add to RFQ Dimensional Chart | |
|
|
AFP-10S-F |
62 gpm - 20 PSI (46.2 Ft. Hd.) 50 gpm - 30 PSI (69.3 Ft. Hd.) 35 gpm - 40 PSI (92.4 Ft. Hd.) |
1-1/2 hp | 1 | 10 gal | Simplex | Simplex Panels | $3,880.00 | Add to RFQ Dimensional Chart |
