Boiler Gaskets - Topog-E, E-Pro, Black Max, Blue Max, Spiral Max Topog-E Manhole & Handhole Gaskets Topog-E Series 1000 304 SS Spiral Wound Gaskets
One of the best all-around seals, the Topog-E Series 1000 offers a cost-effective solution that has the ability to withstand high temperature and pressure fluctuations. 3 plies of metal and filler in the spiral create a barrier that reduces the possibility of leaks.
Topog-E® S-1000 are available in most commons size and shapes. Shapes include - circle, elliptical, ob-round, pear and diamond shapes. Standard thickness of 3/16" or 1/4". Common composite selections: 304SS w/ Graphite
Topog-E® Series 1000 service summary: Temperature, -400°F (-240°C) to 850°F (+454°C) in atmosphere, +1200°F (+650°C) in steam.
PLEASE CALL 1-800-780-3776 FOR SIZES NOT SEEN BELOW
All Standard Topog-E Series 1000 Gaskets are 3/16" Thick with 1/4" available upon request. All Handhole Gaskets are sold in (6 Packs)

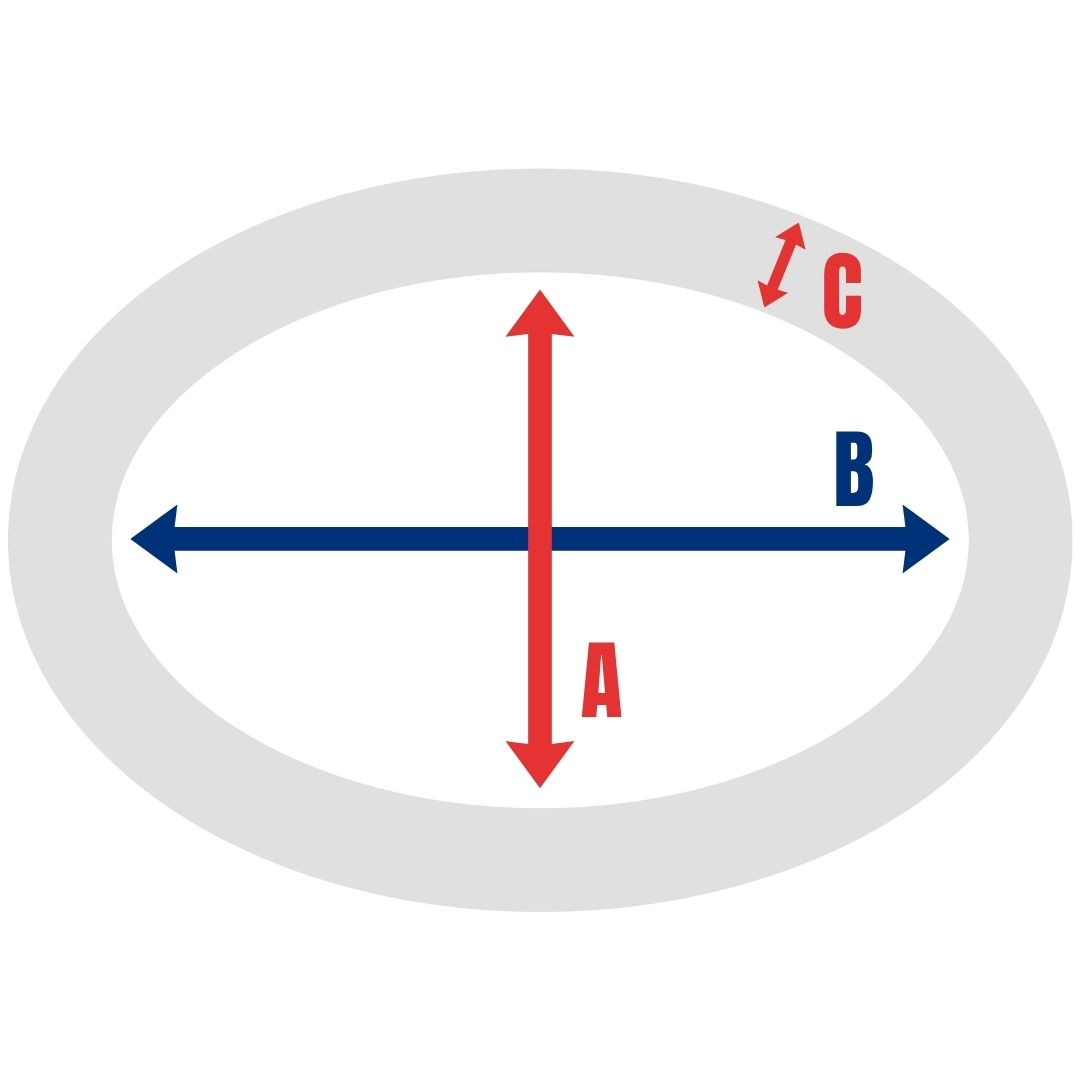

| Part # | A | B | C | Thickness | Type |
(6-Pack) Price |
Qty | |
|---|---|---|---|---|---|---|---|---|

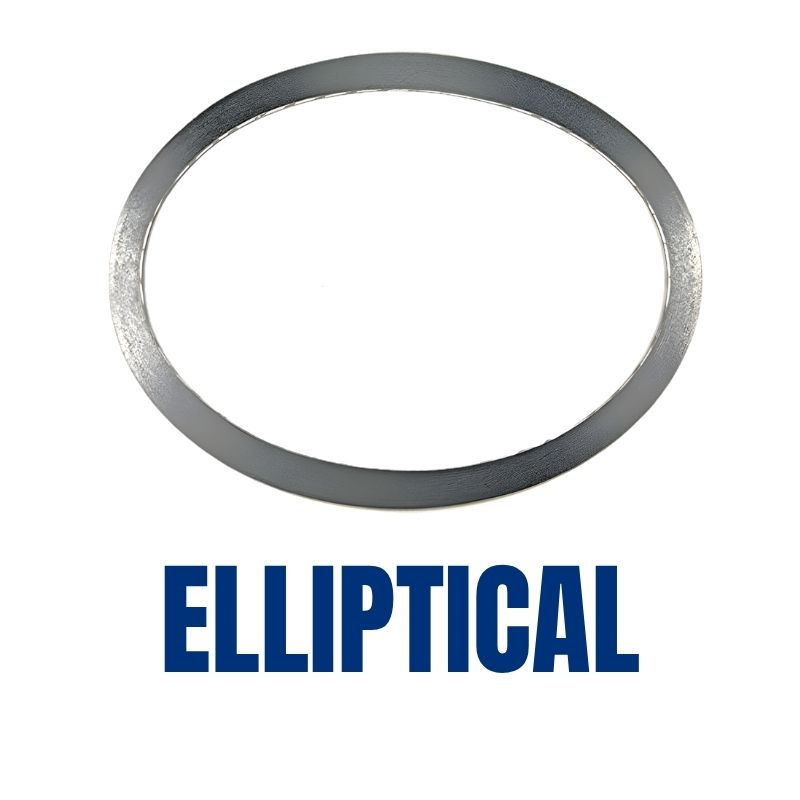

| 767-001PKT | 3" | 4" | 1/2" | 3/16" | Elliptical | $51.24 | Add to Cart | |
| 767-002PKT | 3" | 4" | 9/16" | 3/16" | Elliptical | $58.50 | Add to Cart | |
| 767-003PKT | 3" | 4" | 5/8" | 3/16" | Elliptical | $65.94 | Add to Cart | |
| 767-006PKT | 3-1/4" | 4-1/2" | 1/2" | 3/16" | Elliptical | $61.68 | Add to Cart | |
| 767-007PKT | 3-1/4" | 5" | 3/8" | 3/16" | Elliptical | $45.72 | Add to Cart | |
| 767-008PKT | 3-1/4" | 5" | 1/2" | 3/16" | Elliptical | $62.70 | Add to Cart | |
| 767-009PKT | 3-1/4" | 5" | 9/16" | 3/16" | Elliptical | $71.28 | Add to Cart | |
| 767-010PKT | 3-1/2" | 4-1/2" | 3/8" | 3/16" | Elliptical | $41.52 | Add to Cart | |
| 767-011PKT | 3-1/2" | 4-1/2" | 1/2" | 3/16" | Elliptical | $56.94 | Add to Cart | |
| 767-012PKT | 3-1/2" | 5" | 1/2" | 3/16" | Elliptical | $62.70 | Add to Cart | |
| 767-013PKT | 4" | 5" | 3/8" | 3/16" | Elliptical | $45.72 | Add to Cart | |
| 767-015PKT | 4" | 5" | 5/8" | 3/16" | Elliptical | $80.22 | Add to Cart | |
| 767-014PKT | 4" | 6" | 1/2" | 3/16" | Elliptical | $73.98 | Add to Cart | |
| 767-018PKT | 4" | 6" | 3/4" | 3/16" | Elliptical | $115.62 | Add to Cart | |

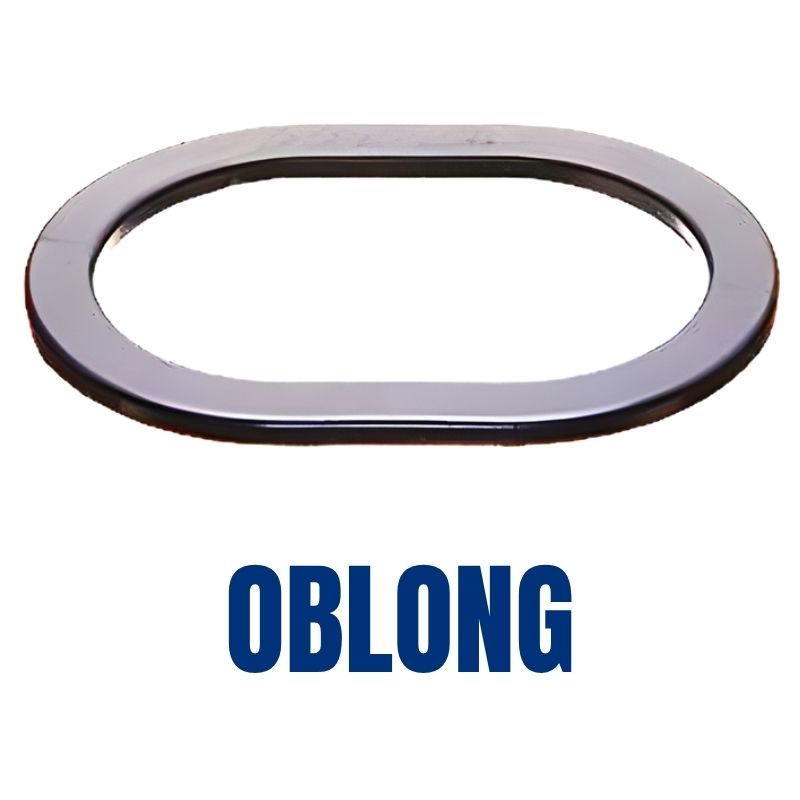

| 767-019PKT | 3" | 4" | 1/2" | 3/16" | Oblong | $51.24 | Add to Cart | |
| 767-020PKT | 3" | 4-1/2" | 1/2" | 3/16" | Oblong | $56.94 | Add to Cart | |
| 767-027PKT | 3-1/4" | 4-1/2" | 3/8" | 3/16" | Oblong | $56.94 | Add to Cart | |
| 767-022PKT | 3-1/4" | 4-1/2" | 1/2" | 3/16" | Oblong | $56.94 | Add to Cart | |
| 767-028PKT | 3-1/4" | 4-1/2" | 9/16" | 3/16" | Oblong | $65.96 | Add to Cart | |
| 767-023PKT | 3-1/4" | 4-1/2" | 5/8" | 3/16" | Oblong | $73.08 | Add to Cart | |
| 767-024PKT | 3-1/2" | 4-1/2" | 1/2" | 3/16" | Oblong | $56.94 | Add to Cart |
| Part # | A | B | C | Thickness | Type | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| 767-027T | 11" | 15" | 15/16" | 3/16" | Elliptical | $44.98 | Add to Cart | |
| 767-028T | 11" | 15" | 1-1/4" | 3/16" | Elliptical | $77.20 | Add to Cart | |
| 767-030T | 12" | 16" | 1" | 3/16" | Elliptical | $47.83 | Add to Cart | |
| 767-031T | 12" | 16" | 15/16" | 1/4" | Elliptical | $63.77 | Add to Cart | |
| 767-032T | 12" | 16" | 1-1/4" | 3/16" | Elliptical | $81.96 | Add to Cart | |
| 767-033T | 12" | 16" | 1-1/4" | 1/4" | Elliptical | $109.25 | Add to Cart | |
| 767-037T | 14" | 18" | 1" | 3/16" | Elliptical | $91.45 | Add to Cart | |
| 767-034T | 14" | 18" | 1-1/4" | 3/16" | Elliptical | $91.45 | Add to Cart | |
| 767-035T | 14" | 18" | 1-1/2" | 3/16" | Elliptical | $111.04 | Add to Cart | |
| 767-036T | 18" | 24" | 1" | 3/16" | Elliptical | $94.92 | Add to Cart |
