Boiler Gaskets - Topog-E, Black Max, Blue Max, Spiral Max Topog-E Manhole & Handhole Gaskets Topog-E Series 2000 "Obround" Graphite Boiler Gaskets
Compared to spiral wound gaskets, Topog-E Series 2000 "Obround" Handhole & Manhole Gaskets seal better with our exfoliated graphite and has better recovery properties. Topog-E Series 2000 gaskets are specifically designed and fabricated to provide superior performance.
Topog-E Series 2000 GASKETS
Temp: -400°F (-240°C) to +850°F (+454°C) in atmosphere, +1200°F (+650°C) in Steam
Pressure: 2000 psig (70 bar) | P x T 175,000 (6,000) 1/4"
M Factor 2 (Smooth Flange Surface) | Y Stress 900 psi (6 MPa) (Smooth Flange Surface)
Maximum Gasket Load 24,000 psi (165 MPa)
Gaskets are 1/4" Nominal Thickness

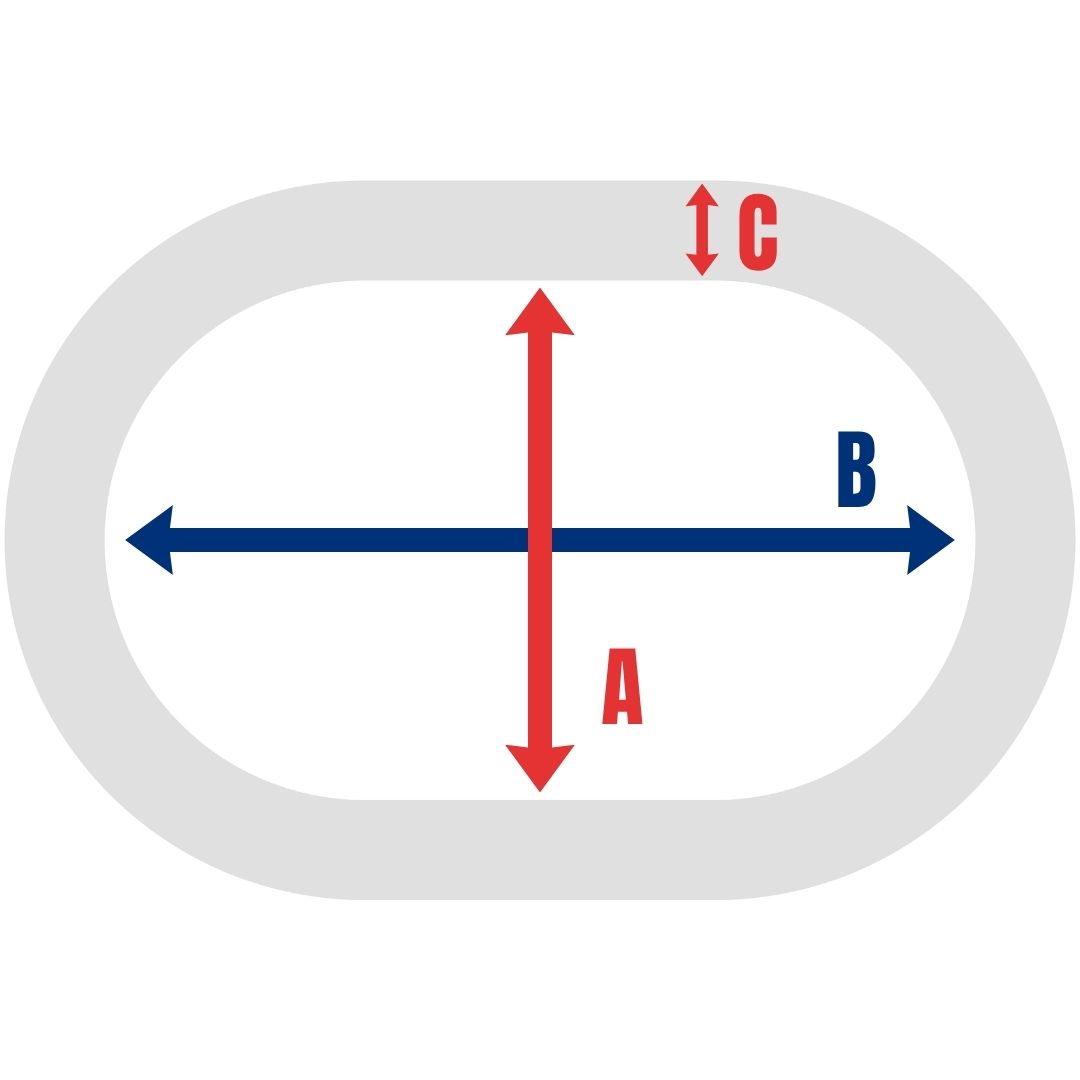

| Part # | A | B | C |
(6 Pack) Price |
Qty | |
|---|---|---|---|---|---|---|
| 868-002-OBPKT | 2-3/4" | 3-1/2" | 1/2" Flange | $52.80 | Add to Cart | |
| 868-003-OBPKT | 3" | 3-3/4" | 1/2" Flange | $54.06 | Add to Cart | |
| 868-004-OBPKT | 2-3/4" | 3-3/4" | 1/2" Flange | $55.56 | Add to Cart | |
| 868-005-OBPKT | 3" | 4" | 1/2" Flange | $52.98 | Add to Cart | |
| 868-006-OBPKT | 3" | 4-1/2" | 1/2" Flange | $53.70 | Add to Cart | |
| 868-007-OBPKT | 3-1/4" | 5" | 1/2" Flange | $62.64 | Add to Cart | |
| 868-008-OBPKT | 3-1/4" | 4-1/2" | 1/2" Flange | $57.72 | Add to Cart | |
| 868-009-OBPKT | 3-1/2" | 4-1/2" | 1/2" Flange | $60.90 | Add to Cart | |
| 868-010-OBPKT | 4" | 6" | 1/2" Flange | $64.92 | Add to Cart | |
| 868-011-OBPKT | 6" | 8" | 1/2" Flange | $125.52 | Add to Cart | |
| 868-012-OBPKT | 2-3/4" | 3-1/2" | 5/8" Flange | $52.80 | Add to Cart | |
| 868-013-OBPKT | 2-3/4" | 3-3/4" | 5/8" Flange | $55.56 | Add to Cart | |
| 868-014-OBPKT | 3" | 3-3/4" | 5/8" Flange | $54.06 | Add to Cart | |
| 868-015-OBPKT | 3" | 4" | 5/8" Flange | $52.98 | Add to Cart | |
| 868-016-OBPKT | 3" | 4-1/2" | 5/8" Flange | $53.70 | Add to Cart | |
| 868-017-OBPKT | 3-1/4" | 4-1/2" | 5/8" Flange | $57.72 | Add to Cart | |
| 868-018-OBPKT | 3-1/4" | 5" | 5/8" Flange | $62.64 | Add to Cart | |
| 868-019-OBPKT | 3-1/2" | 4-1/2" | 5/8" Flange | $60.90 | Add to Cart | |
| 868-020-OBPKT | 4" | 5" | 5/8" Flange | $63.48 | Add to Cart | |
| 868-021-OBPKT | 4" | 6" | 5/8" Flange | $64.92 | Add to Cart | |
| 868-022-OBPKT | 6" | 8" | 5/8" Flange | $125.52 | Add to Cart | |
| 868-033-OBPKT | 4" | 5" | 3/4" Flange | $69.78 | Add to Cart | |
| 868-034-OBPKT | 4" | 6" | 3/4" Flange | $72.48 | Add to Cart | |
| 868-035-OBPKT | 4" | 6" | 1" Flange | $80.88 | Add to Cart | |
| 868-036-OBPKT | 6" | 8" | 3/4" Flange | $133.50 | Add to Cart | |
| 868-037-OBPKT | 6" | 8" | 1" Flange | $149.70 | Add to Cart |
| Part # | A | B | C |
(2-Pack) Price |
Qty | |
|---|---|---|---|---|---|---|
| 868-038-OBPKT | 8" | 10" | 3/4" Flange | $115.20 | Add to Cart | |
| 868-041-OBPKT | 10" | 14" | 3/4" Flange | $166.74 | Add to Cart | |
| 868-042-OBPKT | 10" | 14" | 1" Flange | $179.48 | Add to Cart | |
| 868-043-OBPKT | 10" | 14" | 1-1/4" Flange | $192.74 | Add to Cart | |
| 868-044-OBPKT | 10" | 15" | 3/4" Flange | $177.42 | Add to Cart | |
| 868-045-OBPKT | 10" | 15" | 1" Flange | $190.60 | Add to Cart | |
| 868-046-OBPKT | 10" | 15" | 1-1/4" Flange | $204.34 | Add to Cart | |
| 868-047-OBPKT | 11" | 14" | 3/4" Flange | $176.62 | Add to Cart | |
| 868-048-OBPKT | 11" | 14" | 1" Flange | $186.22 | Add to Cart | |
| 868-049-OBPKT | 11" | 14" | 1-1/4" Flange | $196.24 | Add to Cart | |
| 868-050-OBPKT | 11" | 15" | 3/4" Flange | $185.12 | Add to Cart | |
| 868-051-OBPKT | 11" | 15" | 1" Flange | $195.12 | Add to Cart | |
| 868-052-OBPKT | 11" | 15" | 1-1/4" Flange | $205.32 | Add to Cart | |
| 868-053-OBPKT | 11" | 16" | 3/4" Flange | $199.14 | Add to Cart | |
| 868-054-OBPKT | 11" | 16" | 1" Flange | $212.96 | Add to Cart | |
| 868-055-OBPKT | 11" | 16" | 1-1/4" Flange | $2,274.16 | Add to Cart | |
| 868-056-OBPKT | 12" | 15" | 3/4" Flange | $200.78 | Add to Cart | |
| 868-057-OBPKT | 12" | 15" | 1" Flange | $206.34 | Add to Cart | |
| 868-058-OBPKT | 12" | 15" | 1-1/4" Flange | $217.10 | Add to Cart | |
| 868-059-OBPKT | 12" | 16" | 3/4" Flange | $205.38 | Add to Cart | |
| 868-060-OBPKT | 12" | 16" | 1" Flange | $215.98 | Add to Cart | |
| 868-061-OBPKT | 12" | 16" | 1-1/4" Flange | $226.84 | Add to Cart | |
| 868-062-OBPKT | 12" | 16" | 1-1/2" Flange | $254.48 | Add to Cart |
| Part # | A | B | C | Individual Price | Qty | |
|---|---|---|---|---|---|---|
| 868-063-OBT | 14" | 18" | 3/4" Flange | $127.40 | Add to Cart | |
| 868-064-OBT | 18" | 24" | 3/4" Flange | $211.60 | Add to Cart | |
| 868-065-OBT | 14" | 18" | 1" Flange | $134.81 | Add to Cart | |
| 868-066-OBT | 16" | 18" | 1" Flange | $153.47 | Add to Cart | |
| 868-067-OBT | 18" | 24" | 1" Flange | $221.23 | Add to Cart | |
| 868-068-OBT | 14" | 18" | 1-1/4" Flange | $142.44 | Add to Cart | |
| 868-069-OBT | 16" | 18" | 1-1/4" Flange | $161.63 | Add to Cart | |
| 868-070-OBT | 18" | 24" | 1-1/4" Flange | $231.06 | Add to Cart | |
| 868-071-OBT | 14" | 18" | 1-1/2" Flange | $150.29 | Add to Cart | |
| 868-072-OBT | 18" | 24" | 1-1/2" Flange | $241.12 | Add to Cart |
