Boiler Gaskets - Topog-E, E-Pro, Black Max, Blue Max, Spiral Max Topog-E Manhole & Handhole Gaskets Topog-E Series 450 "Obround" Boiler Gaskets
Topog-E Series 450 "Obround" boiler gaskets are made from a special formula glass/elastomer-impregnated tacky cloth. The gaskets have their sizes clearly marked for easy installation. These super-strong gaskets resist splitting due to over-tightening flange surfaces.
Topog-E Series 450 "Obround" boiler gaskets will give you all of the advantages of an asbestos gasket without the health risks. Topog-E Series 450 gaskets are manufactured from a proprietary tacky cloth of glass synthetic fibers and brass wire, and impregnated with a blue elastomer compound.
Topog-E Series 450 Gasket Key Benefits:
Zero Leakage Under Pressure: Tests by major boiler manufacturers confirm that Topog-E Series 450 gaskets seal with zero leakage on steam to 450 psi and on cold-water hydro tests up to 1500 psi and withstand working temperatures up to 500℉
Easily Removed: Removal is easy and requires no scraping, chiseling or grinding.
Sizes Clearly Marked: Each Topog-E Series 450 gasket is permanently marked with its size.
Easy Problem Free Installation: The gasket naturally lays flat on the flange and requires no special installation tools, procedures or training.
Interchangeable Sizes: Corresponding OB round and oval sizes are interchangeable.
Maximum Sealing on Rough Surfaces
Chemical Resistant: The proprietary Teflon wrap is resistant to the chemicals used in treating boiler water, so gaskets will last longer.
Extended Shelf Life: A Topog-E Series 450 Gasket won't dry out or lose its strength while in sits on the shelf.

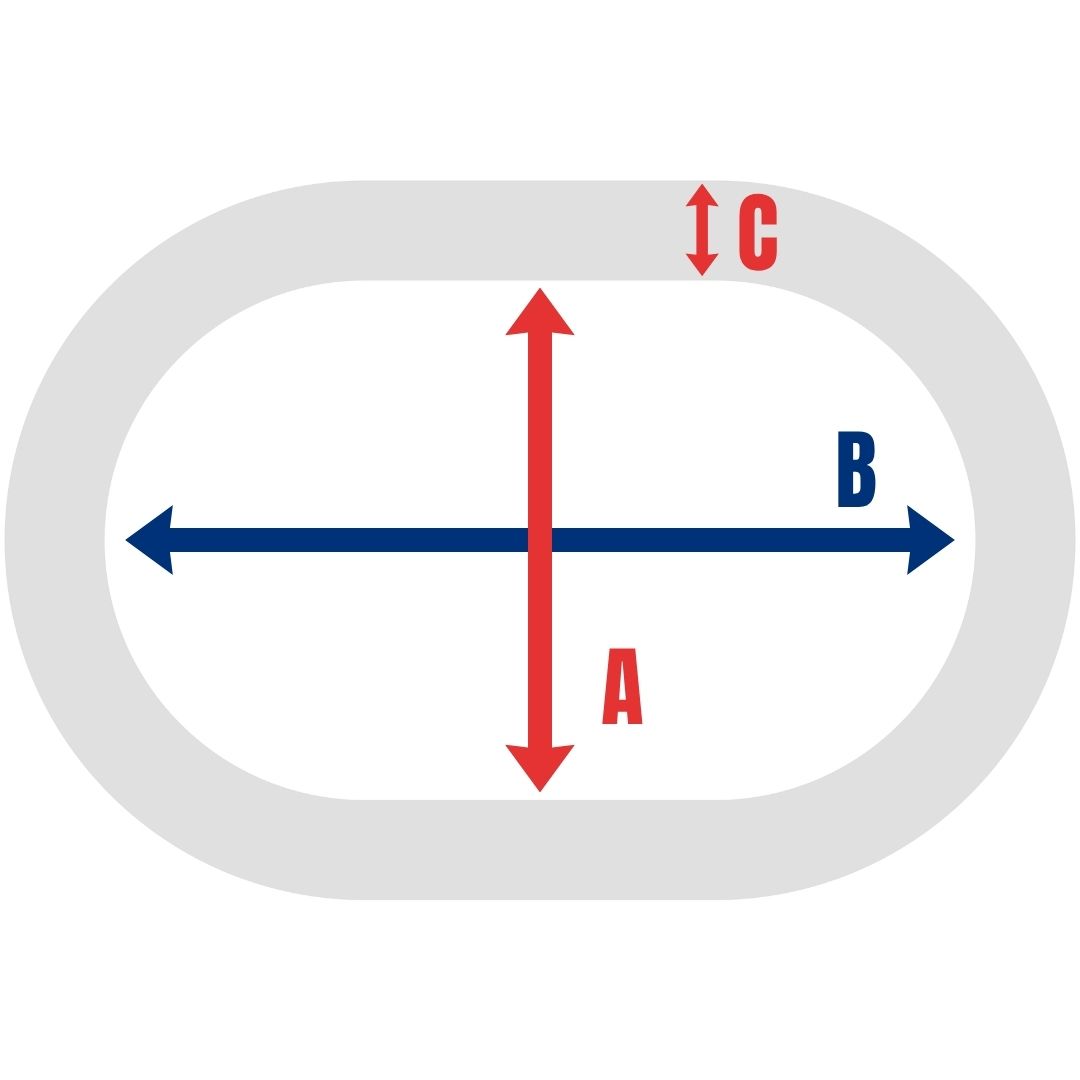

| Part # | A | B | C |
(6 Pack) Price |
Qty | |
|---|---|---|---|---|---|---|
| 336-001-OBPKT | 2-3/4" | 3-1/2" | 1/2" Flange | $91.56 | Add to Cart | |
| 336-002-OBPKT | 2-3/4" | 3-3/4" | 1/2" Flange | $92.28 | Add to Cart | |
| 336-003-OBPKT | 3" | 3-3/4" | 1/2" Flange | $95.40 | Add to Cart | |
| 336-004-OBPKT | 3" | 4" | 1/2" Flange | $95.76 | Add to Cart | |
| 336-005-OBPKT | 3" | 4-1/2" | 1/2" Flange | $98.22 | Add to Cart | |
| 336-006-OBPKT | 3" | 5" | 1/2" Flange | $100.20 | Add to Cart | |
| 336-007-OBPKT | 3-1/4" | 4-1/2" | 1/2" Flange | $104.76 | Add to Cart | |
| 336-008-OBPKT | 3-1/4" | 5" | 1/2" Flange | $109.20 | Add to Cart | |
| 336-009-OBPKT | 3-1/2" | 4-1/2" | 1/2" Flange | $104.76 | Add to Cart | |
| 336-010-OBPKT | 4" | 5" | 1/2" Flange | $106.38 | Add to Cart | |
| 336-011-OBPKT | 4" | 6" | 1/2" Flange | $112.14 | Add to Cart | |
| 336-012-OBPKT | 6" | 8" | 1/2" Flange | $134.88 | Add to Cart | |
| 336-067-OBPKT | 3-1/4" | 4-1/2" | 9/16" Flange | $127.08 | Add to Cart | |
| 336-013-OBPKT | 2-3/4" | 3-1/2" | 5/8" Flange | $102.72 | Add to Cart | |
| 336-014-OBPKT | 2-3/4" | 3-3/4" | 5/8" Flange | $105.12 | Add to Cart | |
| 336-015-OBPKT | 3" | 3-3/4" | 5/8" Flange | $106.38 | Add to Cart | |
| 336-016-OBPKT | 3" | 4" | 5/8" Flange | $109.08 | Add to Cart | |
| 336-017-OBPKT | 3" | 4-1/2" | 5/8" Flange | $112.98 | Add to Cart | |
| 336-018-OBPKT | 3" | 5" | 5/8" Flange | $115.50 | Add to Cart | |
| 336-019-OBPKT | 3-1/4" | 4-1/2" | 5/8" Flange | $115.68 | Add to Cart | |
| 336-020-OBPKT | 3-1/4" | 5" | 5/8" Flange | $120.12 | Add to Cart | |
| 336-021-OBPKT | 3-1/2" | 4-1/2" | 5/8" Flange | $115.68 | Add to Cart | |
| 336-022-OBPKT | 4" | 5" | 5/8" Flange | $123.12 | Add to Cart | |
| 336-023-OBPKT | 4" | 6" | 5/8" Flange | $130.56 | Add to Cart | |
| 336-024-OBPKT | 6" | 8" | 5/8" Flange | $159.66 | Add to Cart | |
| 336-031-OBPKT | 4" | 5" | 3/4" Flange | $141.12 | Add to Cart | |
| 336-032-OBPKT | 4" | 6" | 3/4" Flange | $150.12 | Add to Cart | |
| 336-033-OBPKT | 6" | 8" | 3/4" Flange | $184.32 | Add to Cart | |
| 336-034-OBPKT | 4" | 6" | 1" Flange | $174.24 | Add to Cart | |
| 336-035-OBPKT | 6" | 8" | 1" Flange | $206.46 | Add to Cart |
| Part # | A | B | C |
(2 Pack) Price |
Qty | |
|---|---|---|---|---|---|---|
| 336-036-OBPKT | 8" | 10" | 3/4" Flange | $88.18 | Add to Cart | |
| 336-037-OBPKT | 10" | 14" | 3/4" Flange | $139.94 | Add to Cart | |
| 336-038-OBPKT | 10" | 15" | 3/4" Flange | $144.96 | Add to Cart | |
| 336-039-OBPKT | 11" | 15" | 3/4" Flange | $112.08 | Add to Cart | |
| 336-040-OBPKT | 11" | 16" | 3/4" Flange | $114.82 | Add to Cart | |
| 336-041-OBPKT | 12" | 15" | 3/4" Flange | $114.82 | Add to Cart | |
| 336-042-OBPKT | 12" | 16" | 3/4" Flange | $117.66 | Add to Cart | |
| 336-043-OBPKT | 8" | 10" | 1" Flange | $109.96 | Add to Cart | |
| 336-044-OBPKT | 10" | 14" | 1" Flange | $139.94 | Add to Cart | |
| 336-045-OBPKT | 10" | 15" | 1" Flange | $155.74 | Add to Cart | |
| 336-046-OBPKT | 11" | 15" | 1" Flange | $141.40 | Add to Cart | |
| 336-047-OBPKT | 11" | 16" | 1" Flange | $146.10 | Add to Cart | |
| 336-048-OBPKT | 12" | 15" | 1" Flange | $145.36 | Add to Cart | |
| 336-049-OBPKT | 12" | 16" | 1" Flange | $149.26 | Add to Cart | |
| 336-051-OBPKT | 10" | 14" | 1-1/4" Flange | $161.70 | Add to Cart | |
| 336-052-OBPKT | 10" | 15" | 1-1/4" Flange | $166.92 | Add to Cart | |
| 336-053-OBPKT | 11" | 14" | 1-1/4" Flange | $167.68 | Add to Cart | |
| 336-054-OBPKT | 11" | 15" | 1-1/4" Flange | $172.50 | Add to Cart | |
| 336-055-OBPKT | 11" | 16" | 1-1/4" Flange | $176.78 | Add to Cart | |
| 336-056-OBPKT | 12" | 15" | 1-1/4" Flange | $176.78 | Add to Cart | |
| 336-057-OBPKT | 12" | 16" | 1-1/4" Flange | $181.72 | Add to Cart | |
| 336-058-OBPKT | 12" | 16" | 1-1/2" Flange | $242.34 | Add to Cart |
| Part # | A | B | C | Individual Price | Qty | |
|---|---|---|---|---|---|---|
| 336-059-OBT | 14" | 18" | 1" Flange | $82.64 | Add to Cart | |
| 336-060-OBT | 16" | 18" | 1" Flange | $110.94 | Add to Cart | |
| 336-061-OBT | 18" | 24" | 1" Flange | $152.23 | Add to Cart | |
| 336-062-OBT | 14" | 18" | 1-1/4" Flange | $100.73 | Add to Cart | |
| 336-063-OBT | 16" | 18" | 1-1/4" Flange | $116.81 | Add to Cart | |
| 336-064-OBT | 18" | 24" | 1-1/4" Flange | $158.97 | Add to Cart | |
| 336-065-OBT | 14" | 18" | 1-1/2" Flange | $134.32 | Add to Cart | |
| 336-066-OBT | 18" | 24" | 1-1/2" Flange | $211.98 | Add to Cart |
