Babbitt Chain Wheels & Pocket Wheels For Valves | Boiler Supplies Aluminum Solid Hub Chainwheels

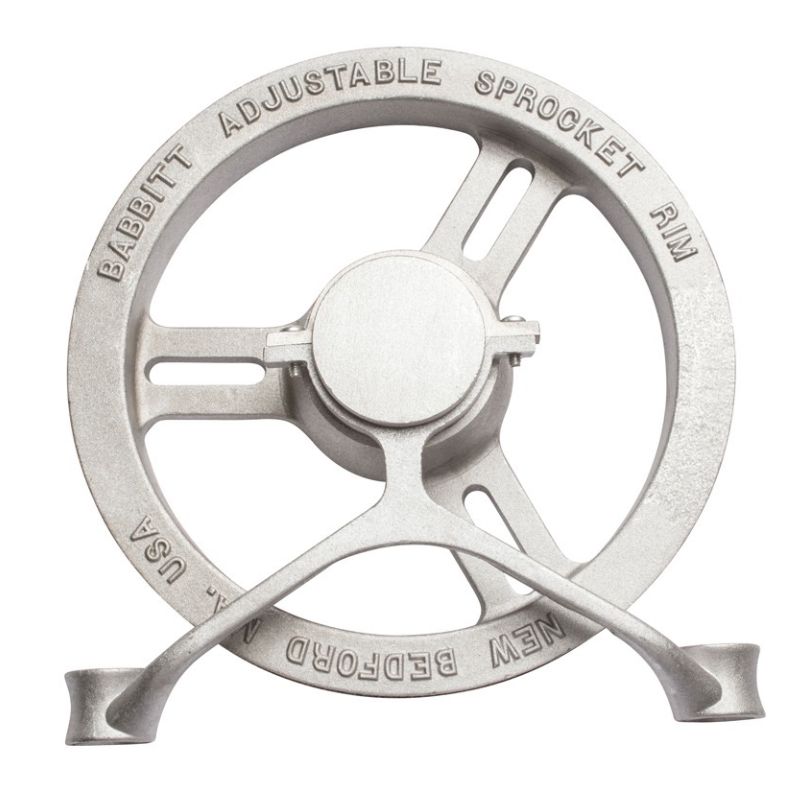

Aluminum solid hub chainwheels with aluminum guide arms for direct mounting to valve shaft, eliminates the valve hand wheel. All ARGSH units come complete with rim and chain guide. Consult PPI for bore machine charges. This chainwheel is also available in the safety wheel configuration. Babbitt solid hubs eliminate the need for handwheels by mounting directly to the valve or geared operator stem. Like all Babbit chain wheels, the solid hub controls overhead valves economically and permits direct-to-shaft operation providing safety and versatility. Hubs can be bored to user specifications, or shopped solid for customer drilling. Consult PPI for custom boring charges. Custom bored chain wheels are non-returnable.
Chainwheel uses 316 Stainless Steel Chain.

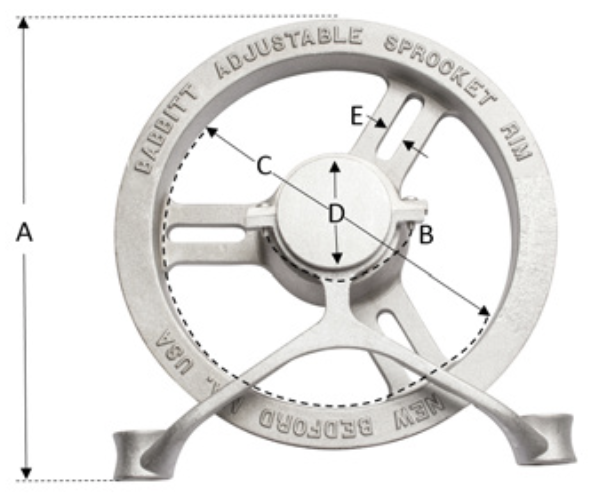

| Babbitt Part # / Wheel Size # | ARGSH-0 | ARGSH-1 | ARGSH-1.5 | ARGSH-2 | ARGSH-2.5 | ARGSH-3 | ARGSH-3.5 | ARGSH-4 | ARGSH-4.5 | ARGSH-5 |
|---|---|---|---|---|---|---|---|---|---|---|
| A- OVERALL HEIGHT | 4-5/8" | 6-3/8" | 7-3/4" | 10-1/2" | 12-1/2" | 15-1/2" | 18-1/2" | 21-1/2" | 25-3/4" | 30-1/4" |
| B- INNER BOLT CIRCLE | 1-1/2" | 2-1/2" | 3-1/2" | 4-1/2" | 5-1/2" | 8-1/2" | 11-1/2" | 11-1/2" | 14-1/2" | 18-3/4" |
| C- OUTER BOLT CIRCLE | 1-7/8" | 3-1/2" | 5" | 6-5/8" | 9-1/4" | 12-3/8" | 15-1/2" | 17-3/4" | 21-1/4" | 25-1/4" |
| D- HUB OPENING (DIA) | 1/2" | 7/8" | 1" | 2-1/8" | 2-1/8" | 2-1/8" | 3" | 3" | 3" | 3" |
| E- SLOT SIZE (WIDTH) | 1-5/16" | 3/8" | 3/8" | 3/8" | 7/16" | 7/16" | 7/16" | 5/8" | 5/8" | 5/8" |
| F- REAR OPENING | 3/4" | 1-1/2" | 1-7/8" | 3-1/8" | 3-1/2" | 3-1/2" | 4-7/8" | 4-7/8" | 4-5/8" | 4-3/4" |
| G- HUB DEPTH (SHOULDER TO REAR) | 1-1/8" | 1-1/2" | 1-7/16" | 1-3/8" | 1-3/4" | 1-7/8" | 1-7/8" | 1-7/8" | 1-7/8" | 2" |
| H- RIM THICKNESS | 7/8" | 1-1/8" | 1-1/8" | 1-1/8" | 1-1/4" | 1-1/4" | 1-1/4" | 1-1/2" | 1-1/2" | 1-1/2" |
| I- OVERALL DEPTH | 1-3/4" | 2-1/4" | 2-3/8" | 2-3/8" | 2-5/8" | 2-5/8" | 3-1/8" | 3-1/8" | 3-1/8" | 3-1/8" |
| Item # |
Description Chain Operator |
Valve Handwheel OD (inches) |
Chain Operator # |
Wheel Rim OD (inches) |
Uses Chain Size |
Max Boring Diameter |
Price | |
|---|---|---|---|---|---|---|---|---|
| ARGSH-0 |
Aluminum Solid Hub Chainwheel Only ARGSH-0 |
2 - 4" | 0 | 4" | 2 | 1/2" | $102.95 | Add to RFQ |
| ARGSH-1 |
Aluminum Solid Hub Chainwheel Only ARGSH-1 |
4-1/4 - 5-3/4" | 1 | 5-3/4" | 1/0 | 7/8" | $145.95 | Add to RFQ |
| ARGSH-1.5 |
Aluminum Solid Hub Chainwheel Only ARGSH-1.5 |
6 - 7-1/2" | 1.5 | 7-1/2" | 1/0 | 1" | $215.95 | Add to RFQ |
| ARGSH-2 |
Aluminum Solid Hub Chainwheel Only ARGSH-2 |
7-3/4 - 9" | 2 | 9" | 1/0 | 2-1/8" | $250.95 | Add to RFQ |
| ARGSH-2.5 |
Aluminum Solid Hub Chainwheel Only ARGSH-2.5 |
9-1/4 - 12-1/2" | 2.5 | 12" | 4/0 | 2-1/8" | $297.95 | Add to RFQ |
| ARGSH-3 |
Aluminum Solid Hub Chainwheel Only ARGSH-3 |
12-3/4 - 15-1/2" | 3 | 15-1/2" | 4/0 | 2-1/8" | $414.95 | Add to RFQ |
| ARGSH-3.5 |
Aluminum Solid Hub Chainwheel Only ARGSH-3.5 |
15-3/4 - 19" | 3.5 | 18-1/2" | 4/0 | 3" | $717.95 | Add to RFQ |
| ARGSH-4 |
Aluminum Solid Hub Chainwheel Only ARGSH-4 |
19-1/4 - 22" | 4 | 21-1/2" | 5/0 | 3" | $758.95 | Add to RFQ |
| ARGSH-4.5 |
Aluminum Solid Hub Chainwheel Only ARGSH-4.5 |
22-1/2 - 26" | 4.5 | 25-3/4" | 5/0 | 3" | $1,983.95 | Add to RFQ |
| ARGSH-5 |
Aluminum Solid Hub Chainwheel Only ARGSH-5 |
26-1/4 - 30" | 5 | 30" | 5/0 | 3" | $2,916.95 | Add to RFQ |
| Item # |
Chain Operator # |
Uses Chain Trade Size |
Price | |
|---|---|---|---|---|
| SC-0 | ARGSH-0 | 2 | $13.00 | Add to RFQ |
| SC-1 | ARGSH-1 | 1/0 | $21.00 | Add to RFQ |
| SC-1 | ARGSH-1.5" | 1/0 | $21.00 | Add to RFQ |
| SC-1 | ARGSH-2 | 1/0 | $21.00 | Add to RFQ |
| SC-2.5 | ARGSH-2.5 | 4/0 | $31.00 | Add to RFQ |
| SC-2.5 | ARGSH-3 | 4/0 | $31.00 | Add to RFQ |
| SC-2.5 | ARGSH-3.5 | 4/0 | $31.00 | Add to RFQ |
| SC-4 | ARGSH-4 | 5/0 | $41.00 | Add to RFQ |
| SC-4 | ARGSH-4.5 | 5/0 | $41.00 | Add to RFQ |
| SC-4 | ARGSH-5 | 5/0 | $41.00 | Add to RFQ |
| Item # |
Chain Operator # |
Uses Chain Trade Size |
Price | |
|---|---|---|---|---|
| ML-1 | ARGSH-1 | 1/0 | $13.00 | Add to RFQ |
| ML-1 | ARGSH-1.5 | 1/0 | $13.00 | Add to RFQ |
| ML-1 | ARGSH-2 | 1/0 | $13.00 | Add to RFQ |
| ML-2.5 | ARGSH-2.5 | 4/0 | $15.00 | Add to RFQ |
| ML-2.5 | ARGSH-3.5 | 4/0 | $15.00 | Add to RFQ |
| ML-2.5 | ARGSH-3.5 | 4/0 | $15.00 | Add to RFQ |
| ML-4 | ARGSH-4 | 5/0 | $17.00 | Add to RFQ |
| ML-4 | ARGSH-4.5 | 5/0 | $17.00 | Add to RFQ |
| ML-4 | ARGSH-5 | 5/0 | $17.00 | Add to RFQ |
