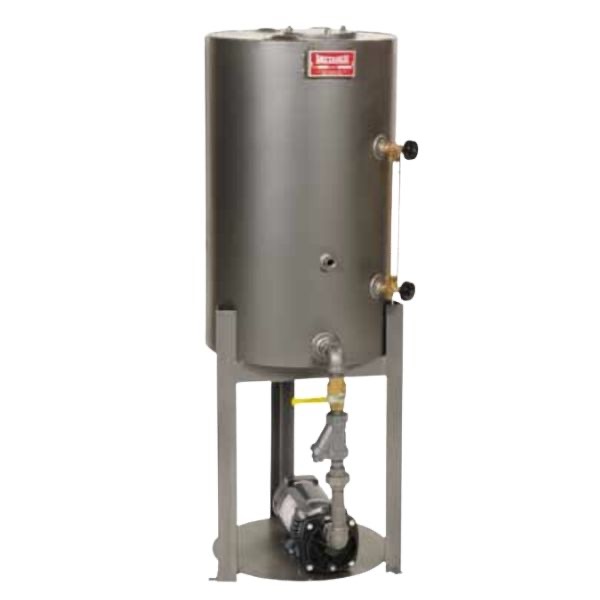

Lattner LV Series Vertical Condensate Return & Feedwater Systems
Heavy duty construction. Carbon or stainless steel receivers. Vertical or horizontal orientation. High or low pressure turbine or centrifugal pumps. Designed for maximum efficiency, longevity, and dependability.
Quick, Easy Installation
Each system is provided as packaged unit: Completely assembled with pump(s), pump motor(s), water gauge set, make-up valve, suction strainer, and shut-off valve.
Optional Features
Duplex or triplex pumps
Pump alternators
Choice of pump manufacturers
Anti-syphon make-up assemblies
Steam tank heater kits
Electric tank heater kits
Fused and non-fused disconnects
Magnetic starters
Dial thermometers
- Up to 400 Gallon Capacity -
Custom horizontal cylindrical condensate return and feedwater systems for all applications (LH Series). Designed for maximum net pump suction head and reliable performance. Can be specified with various manufacturers’ pumps. Stainless steel receiver optional.
Like our standard systems, each custom system is provided as a packaged unit: Completely assembled with pump(s), pump motor(s), water gauge set, make-up valve, suction strainer, and shut-off valve. Please contact factory representative for assistance, design inquiries, and/or specification guidance.
Part # |
Max Boiler Rating (HP) |
Dims (Diameter & Height) |
Tank Size (Gallons) |
Pump Motor Size (HP) |
Simplex or Duplex |
||
---|---|---|---|---|---|---|---|
|
LV5 | 5 | 14” X 33” | 9 | 1/2 | Simplex | Add to Cart Add to RFQ |
|
LV8 | 10 | 14” X 43” | 16 | 1/2 | Simplex | Add to Cart Add to RFQ |
|
LV16 | 20 | 18” X 51” | 32 | 1/2 | Simplex | Add to Cart Add to RFQ |
|
LV20 | 25 | 18” X 51” | 32 | 3/4 | Simplex | Add to Cart Add to RFQ |
|
LV20-3 | 25 | 18” X 51” | 32 | 3/4 | Simplex | Add to Cart Add to RFQ |
|
LV25 | 30 | 18” X 63” | 46 | 3/4 | Simplex | Add to Cart Add to RFQ |
|
LV25-3 | 30 | 18” X 63” | 46 | 3/4 | Simplex | Add to Cart Add to RFQ |
|
LV35 | 40 | 18” X 63” | 46 | 1-1/2 | Simplex | Add to Cart Add to RFQ |
|
LV60 | 60 | 24” X 63” | 65 | 3 | Simplex | Add to Cart Add to RFQ |
|
LV75 | 80 | 24” X 70” | 80 | 3 | Simplex | Add to Cart Add to RFQ |
|
LV100 | 125 | 28” X 71” | 120 | 5 | Simplex | Add to Cart Add to RFQ |
|
LV150 | 150 | 28” X 84” | 150 | 5 | Simplex | Add to Cart Add to RFQ |
|
LV5 | 5 | 14” X 33” | 9 | 1/2 | Duplex | Add to Cart Add to RFQ |
|
LV8 | 10 | 14” X 43” | 16 | 1/2 | Duplex | Add to Cart Add to RFQ |
|
LV16 | 20 | 18” X 51” | 32 | 1/2 | Duplex | Add to Cart Add to RFQ |
|
LV20 | 25 | 18” X 51” | 32 | 3/4 | Duplex | Add to Cart Add to RFQ |
|
LV20-3 | 25 | 18” X 51” | 32 | 3/4 | Duplex | Add to Cart Add to RFQ |
|
LV25 | 30 | 18” X 63” | 46 | 3/4 | Duplex | Add to Cart Add to RFQ |
|
LV25-3 | 30 | 18” X 63” | 46 | 3/4 | Duplex | Add to Cart Add to RFQ |
|
LV35 | 40 | 18” X 63” | 46 | 1-1/2 | Duplex | Add to Cart Add to RFQ |
|
LV60 | 60 | 24” X 63” | 65 | 3 | Duplex | Add to Cart Add to RFQ |
|
LV75 | 80 | 24” X 70” | 80 | 3 | Duplex | Add to Cart Add to RFQ |
|
LV100 | 125 | 28” X 71” | 120 | 5 | Duplex | Add to Cart Add to RFQ |
|
LV150 | 150 | 28” X 84” | 150 | 5 | Duplex | Add to Cart Add to RFQ |
